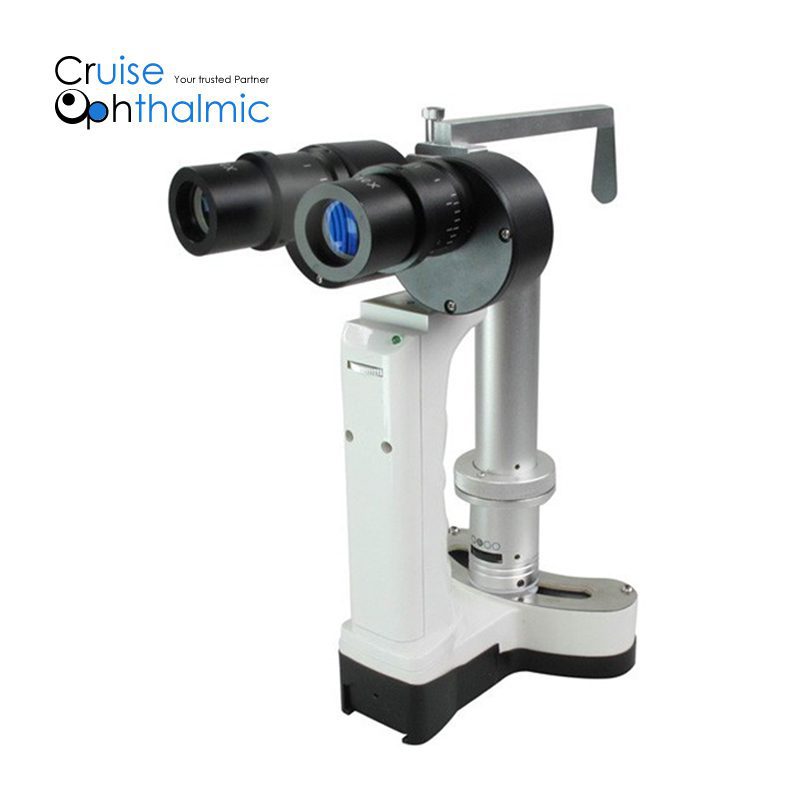

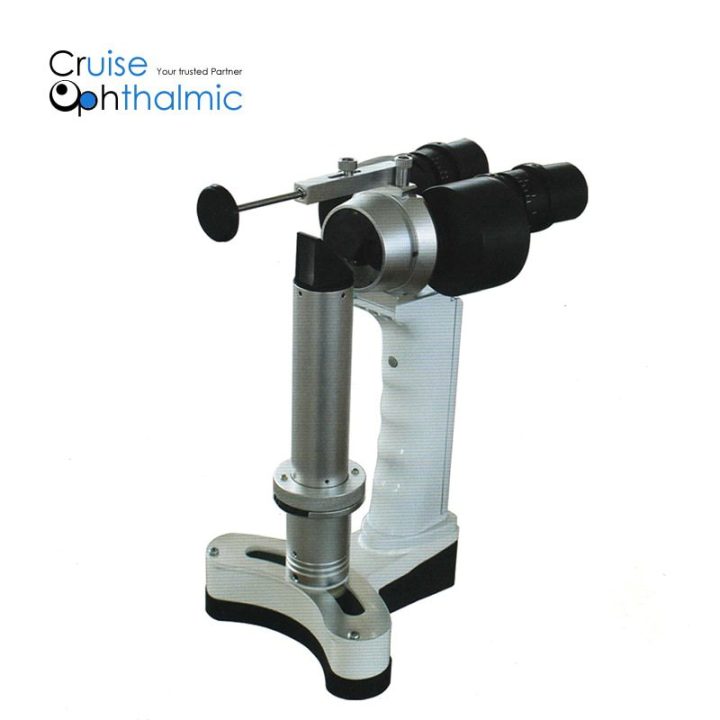

Portable Slit Lamp LYL-S LED Bulb | 4 Apertures | Total 10x and 16x Magnification

1,697.99$

81 in stock

Direct Checkout
Category:
Description
  • Magnification Ratio: 500X & Under
  • Model Number: LYL-S
  • Theory: Biological Microscope
  • Material: Aluminium Alloy
  • Drawtube: Binocular
  • Brand Name: Optometrial
  • Model: LYL-S
  • Magnification Step: 10X, 16X
  • Diopter Adjustment: ±7.0D
  • Aperture Diameter/Slit Height: Dia1.0, Dia3.0, Dia5.0, Dia10.0mm
  • Max. Aperture: Dia10.0mm
  • Object Lens Switch: No
  • LED Emitting Color: White
  • Continous Working Time: 3 Hours
  • Handle Trigger Shot: No





Portable Slit Lamp LYL-S LED Bulb | 4 Apertures | Total 10x and 16x Magnification



Product Exhibition






Product Feature



Features

LYL-S Portable slit lamp microscope is a professional hand held diagnostic slit lamp for examination
of anterior, corneal surface of the patient’s eye, is lightweight and easy to carry and the two rechargeable
Lithium Battery Packs, each with a working time of two hours. The LYL-S is presented in a handy carry case.

Excellent optical system, cordless and rechargeable and ideal for mobile, outdoor eye examination.
High quality imported optical lenses, to assure high clearance and brightness
Quality Optical Lenses with anti-reflection, moisture-proof and mildew-proof coating
LYL-S Hand held, Lightweight, Easy to Use and available at a cost-effective price









Specification



Specification

Model Type

LYL-S

Microscope Type

Converging Stereoscopic

Objective Magnification

1X

Total Magnification

10X / 16X

Eyepieces

10X / 16X

Diopter compensation

±7.0D

Light Spot Diameter

Dia1.0, Dia3.0, Dia5.0, Dia10.0mm

Pupil Distance Range

Eyepieces 10X: 45 -70mm

Eyepieces 16X: 48 -70mm

Working distance

86.5mm

Slit Width

0.0 to 10.0mm

Continuously adjustable

Slit Height

1.0, 3.0, 5.0, 10.0mm

Slit Angle

±30°

Filters

Heat absorption, Red-free,

Grey, Cobalt blue

Illumination

White LED, 3.0 -3.6V / 3W 120mAh,

Lithium Battery Pack

Power supply

7.2V / 750mAh

Input Voltage

18W

Weight Slit lamp

750g

Input  Voltage Charger

AC110-240, 50/60Hz.

Output Voltage Charger

DC 12V / 500mA

Working Time ( Fully charged )

3 hours

Aluminium Carry Case

Standard

Dimensions

40.0 * 22.0 * 23.0cm

Gross Weight

4.0Kg



Details

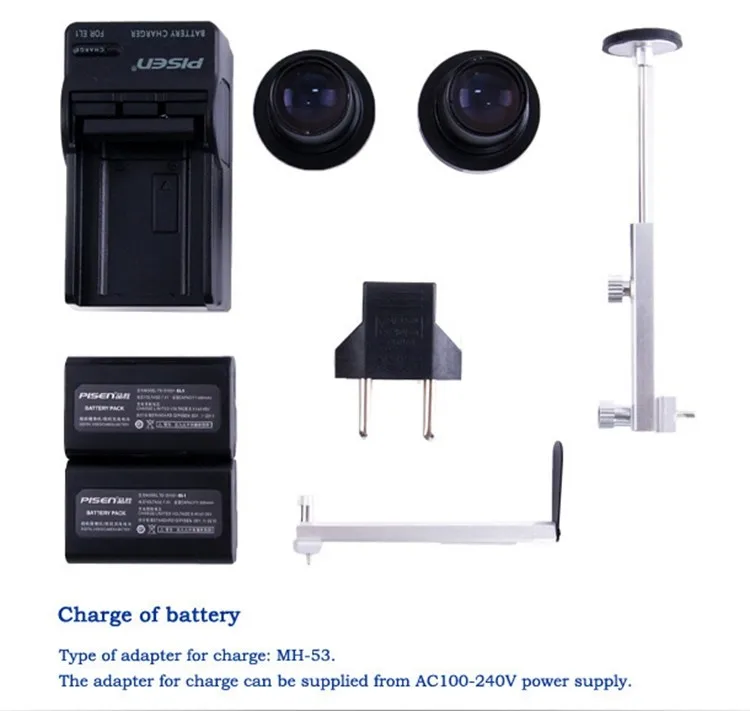

Standard Accessories

Standard Accessories
 Head-rest rack
 Diopter adjustment lever
 Eyepieces 10X / 16X
 Battery Charger
 Rechargeable Power packs
 Aluminium carry case

1
1
2 each
1
2
1
