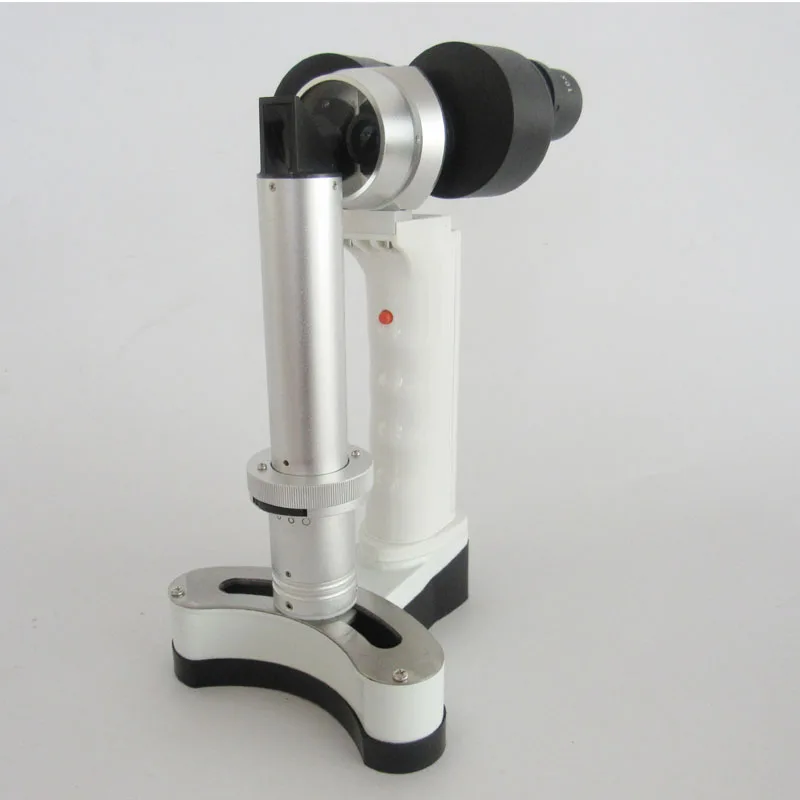

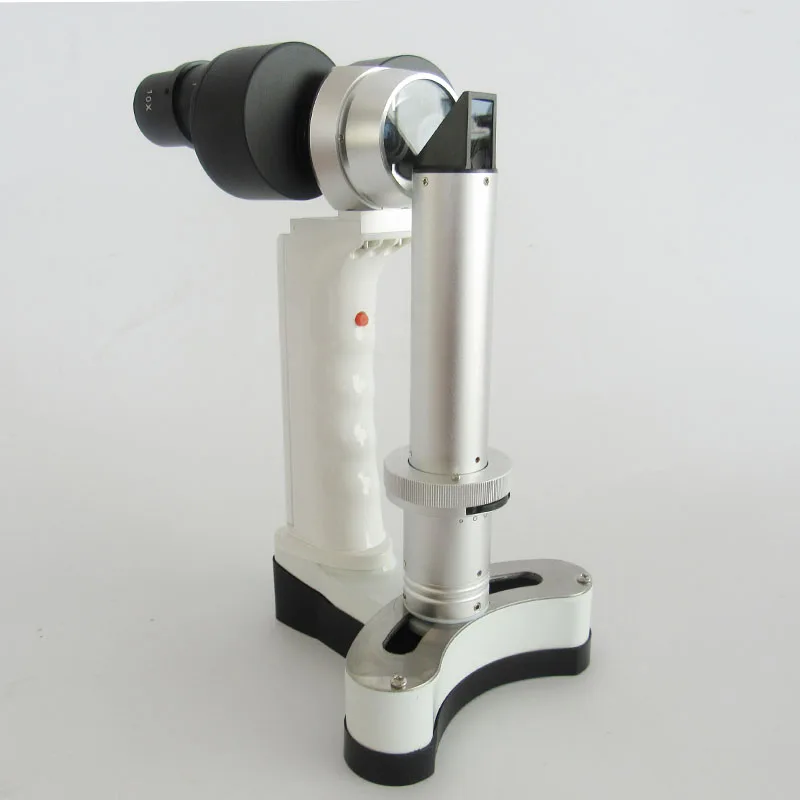

LYL-S Portable Slit Lamp LED Bulb Portable Microscope for Pet hospital ophthalmology Camera Total 10x and 16x Magnification

Price range: 1,680.99$ through 2,140.99$

Color

Clear

Description

Drawtube: Binocular
Model Number: LYL-S
Magnification Ratio: 500X & Under
Material: Aluminium Alloy
Theory: Slit Lamp
Magnification Step: 10X, 16X
diopter adjustment: ±7.0D
Max. Aperture: Dia10.0mm
LED Emitting Color: White
Continous Working Time: 3 Hours
Object Lens Switch: no
Feature: Portable

Hand-held slit lamp and the traditional desktop slit lamp in function is the same, are the most commonly used ophthalmic examination equipment, due to small and convenient, can be used in hand, hand-held slit lamp microscope is based on market demand and the development of portable ophthalmology Optical diagnostic equipment, the use of high-brightness LED as a light source. In order to meet the needs of clinical diagnosis, we configured the four spot diameter, the instrument in the room or darkroom can be used. Optical system design is reasonable, eye optical section clear, high brightness, with light weight, easy to carry, easy to operate features, to facilitate the doctor visits, rounds. Especially for children, the inconvenience of the patient or pet diagnosis, for the domestic initiative.

Standard configuration technical parameters:

Total magnification: 10 x eyepiece, 16x eyepiece

Objective magnification: 1X

Working distance: 86.5mm

Diopter compensation: ± 5D

Spot diameter: ¢ 1, ¢ 3, ¢ 5, ¢ 10mm

IPD: 45-70mm

Working distance: 78mm

Fissure width: 0mm ~ 9mm, continuously adjustable

Fracture height: ¢ 1, ¢ 0.3, ¢ 5, ¢ 10mm

Color filter: light film, no red film, cobalt blue film

Slit lamp overall horizontal rotation: ± 30 °
